Downhole and Sour-Gas Wells
Oil and gas wells take UNS N05500 seamless tube downhole and in sour gas service, where produced fluids carry chlorides and hydrogen sulfide and each line's tests are set on the order.
UNS N05500 / W.Nr. 2.4375
Monel K500 Seamless Tubes Manufacturer in Thailand
For instrumentation lines, sour-gas wells and acid heat exchangers, Thaida Stainless Steel Manufacturing (Thailand) Co., Ltd. manufactures Monel K500 seamless tubes at its mill in Ban Bueng, Chonburi, Thailand. Each tube is UNS N05500 (W.Nr. 2.4375), the age-hardenable grade of our Monel seamless tubes range, with aluminum and titanium added to a nickel-copper base. Every order ships with an EN 10204 3.1 (3.2 on request) certificate, and our office in Bang Phli, Samut Prakan, handles quotations and export documents.
Monel K500 seamless tubeUNS N05500 / W.Nr. 2.4375
- 6 to 457 mmOutside diameter
- 1 to 65 mmWall thickness
- Up to 22 mLength
- EN 10204 3.1Test certificate
EN 10204 3.1 certificate / 3.2 on request
Specifications of Monel K500 Seamless Tubes
Seamless Monel K500 tube is quoted as outside diameter x wall thickness and length within the range below. The purchase order is the governing document for this alloy, so the condition, tolerances and tests shown are confirmed line by line on each order.
- Standard
- Supplied to the purchase order (UNS N05500)
- Grade
- K500 (UNS N05500)
- Outside Diameter
- 6 to 457 mm
- Wall Thickness
- 1 to 65 mm
- Length
- Up to 22 m
- Ordering Basis
- Outside diameter x wall thickness, length and quantity per line
- Delivery Condition
- Solution-treated and age-hardened (precipitation-hardened); other conditions by agreement
- Dimensional Tolerances
- Agreed on the order
- Form
- Seamless tube
- Tests (order items)
- Eddy current or ultrasonic, hydrostatic, PMI
- Test Certificate
- EN 10204 3.13.2 on request
Writing the Order for Seamless Nickel Alloy K500 Tube
Seamless nickel alloy K500 tube is supplied to the purchase order rather than to an ASTM tube specification. The order therefore carries the details a product standard would otherwise fix, and three of them decide what arrives: the delivery condition, the test plan and the tolerances.
Delivery Condition
The usual condition is solution-treated and age-hardened (precipitation-hardened). Aluminum and titanium are what allow the alloy to be age-hardened, and in that condition K500 is considerably stronger than Monel 400. Other conditions are supplied by agreement, and the certificate states the condition of the tubes delivered, with heat treatment charts available as part of the documents. Where a design calls for an age-hardened nickel alloy from another family, we also produce Inconel 718 seamless tubes.
Test Plan on the Certificate
No test regime is fixed by a product standard for this alloy, so each test is an order item. Eddy current and ultrasonic testing are equal options for nondestructive examination; name the method your inspection plan uses. Hydrostatic testing and positive material identification (PMI) are added where the duty calls for them. Every test on the order is reported on the EN 10204 3.1 (3.2 on request) certificate, and third-party inspection is available on request.
Dimensions and Agreed Tolerances
Each seamless 2.4375 tube line is dimensioned as outside diameter x wall thickness, in metric or imperial units, with the length stated. The OD and wall tolerances are agreed on the order and confirmed in our quotation, and a size measurement report can be supplied with the tubes.
Comparing the Order with Monel 400
ASTM B165 covers UNS N04400 only, so our Monel 400 seamless tubes are ordered with that standard's tests and tolerances already defined. Where a line is specified by pipe size rather than tube OD, the same alloy is supplied as Monel K500 seamless pipes, ordered on the same principles.
Chemical Composition of Monel K500 (UNS N05500)
Monel K500 builds on the nickel-copper base of Monel 400 and adds aluminum and titanium, the two elements Monel 400 does not carry. The heat analysis of every seamless alloy 2.4375 tube order is reported on the certificate against these limits.
- NiNickel, 63 min
- CuCopper, 27 to 33
- AlAluminum, 2.30 to 3.15
- FeIron, 2.0 max
- MnManganese, 1.5 max
UNS N05500K500
| Element | Content (%) |
|---|---|
| Ni (Nickel) | 63 min |
| Cu (Copper) | 27 to 33 |
| Al (Aluminum) | 2.30 to 3.15 |
| Ti (Titanium) | 0.35 to 0.85 |
| Fe (Iron) | 2.0 max |
| Mn (Manganese) | 1.5 max |
| C (Carbon) | 0.25 max |
| Si (Silicon) | 0.5 max |
| S (Sulfur) | 0.010 max |
Equivalent Designations of Monel K500
Drawings and data sheets identify Monel K500 by its commercial name, its UNS number or its European material number.
- Commercial nameMonel K500, also written Alloy K-500
- USA (UNS)N05500
- Europe (W.Nr.)2.4375
UNS N05500 is the designation we quote and certify. W.Nr. 2.4375 serves as a cross-reference for drawings that call for seamless WNR 2.4375 tube.
Seamless WNR 2.4375 Tube Sizes
We produce seamless WNR 2.4375 tube from 6 mm to 457 mm outside diameter, with walls from 1 mm to 65 mm and single lengths up to 22 m. Instrumentation and control lines are quoted on their OD and wall, and exchanger and condenser tube to the OD, wall and length on the bundle drawing, in metric or imperial units.
Industrial Applications of UNS N05500 Seamless Tube
Seamless K500 tube is chosen where corrosion resistance similar to Monel 400 must come with the strength of an age-hardened alloy.

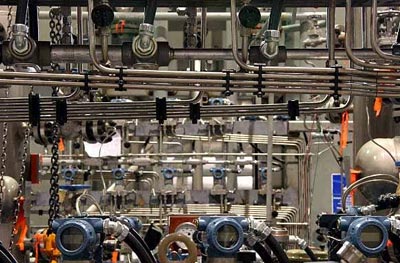

Instrumentation Lines
Instrumentation lines in acidic well conditions and corrosive chemical process streams run in seamless alloy 2.4375 tube, a non-magnetic nickel-copper alloy, with eddy current or ultrasonic testing named on the order.
Acid and Alkali Heat Exchangers
Chemical plants fit seamless nickel alloy K500 tube in heat exchangers handling acids, alkalis and reactive vapors where the bundle needs more strength than Monel 400 gives at similar corrosion resistance.
Ship Condensers and Seawater Lines
Marine and offshore systems use Alloy K500 seamless tube in ship-system condensers and seawater lines, where the alloy offers resistance to high-velocity seawater together with age-hardened strength.
Power Plant Condensers
Power stations order seamless K500 tube for condensers and heat exchangers, with hydrostatic testing and PMI added to the order whenever the plant's inspection plan asks for them.
Pulp and Paper Digesters
Pulp and paper mills use seamless Monel K500 tube in digester service, supplied in the age-hardened condition and documented heat by heat on the EN 10204 3.1 (3.2 on request) certificate.
Shipping and Packaging of Seamless 2.4375 Tube
Packing
Small-diameter tube in wooden cases and larger sizes in strapped bundles, with plastic caps on both ends of each seamless 2.4375 tube.
Marking
UNS N05500, heat number and size on each tube, or on a bundle tag where a tube is too small to mark.
Documents
EN 10204 3.1 (3.2 on request) certificate, heat treatment charts, size measurement report, packing list and commercial invoice.
Inspection
Third-party inspection available on request.
Trade terms
FOB, CIF or CFR, with the destination port named in the offer.
Alloy K500 Seamless Tube Price per kg
Alloy K500 seamless tubes are indicatively priced at USD 24 to 55 per kg. Where a quotation falls in that band depends first on the nickel market and then on copper, next on the solution treatment and aging that the age-hardened condition requires, and finally on OD, wall, tolerance, length, lot size and the tests listed on the order. Send your line list for a dated quotation.
Indicative price, Monel K500 Seamless Tubes
USD 24 to 55 per kg
Indicative only. Send your sizes and specification to Thaida for a firm quotation.
- Outside diameter
- Wall thickness
- Length
- Quantity
- Testing and certification
- Nickel price
- Copper price
Mill, Office and Export Markets
Seamless Monel K500 tube is produced at our factory at 154 Moo.1 Map Phai, Ban Bueng, Chonburi 20170, Thailand, and our office is at 89/18 Moo.15 Enterprize Park, Bangna-Trad Road, Bang Kaeo, Bang Phli, Samut Prakan 10540, Thailand. We supply plants across Thailand and export to Singapore, Malaysia, Vietnam, Indonesia, the Philippines and India.
Factory154 Moo.1 Map Phai, Ban Bueng,
Chonburi 20170, Thailand
Chonburi 20170, Thailand
Office89/18 Moo.15 Enterprize Park, Bangna-Trad Road,
Bang Kaeo, Bang Phli, Samut Prakan 10540, Thailand
Bang Kaeo, Bang Phli, Samut Prakan 10540, Thailand
Exporting to
- Singapore
- Malaysia
- Vietnam
- Indonesia
- Philippines
- India
Seamless Monel K500 Tube FAQ
What should each line of a K500 purchase order include?
List UNS N05500, seamless tube, OD x wall, length and quantity on every line, then add the delivery condition, the agreed OD and wall tolerances, the tests and the certificate level, EN 10204 3.1 (3.2 on request). Since no product standard fills gaps for this alloy, a requirement left off the order is not part of the supply.
Which tests can be ordered on seamless alloy 2.4375 tube?
Eddy current or ultrasonic testing, hydrostatic testing and PMI. Eddy current and ultrasonic are equal options, so one nondestructive method per line is enough unless your inspection plan names both. A third-party inspector can witness the tests on request, and the results appear on the certificate with the heat number of the tubes tested.
How are OD and wall tolerances fixed for a K500 order?
Line by line, from your drawing or data sheet. Close OD and wall tolerances on small diameters or thin walls change the price, so state them at the inquiry stage rather than after the quotation; the agreed values are then confirmed in our offer.
Can seamless K500 tube be ordered in another condition?
Yes, by agreement. Solution-treated and age-hardened (precipitation-hardened) is the usual condition; any other condition is written on the order and stated on the certificate. If the tubes will be bent, expanded or heat treated after delivery, describe that route in the inquiry so the agreed condition suits it.
Should a heat exchanger be tubed in Monel 400 or Monel K500?
Choose K500 when the tube must carry more load than Monel 400 allows. The two alloys offer similar corrosion resistance, and the aluminum and titanium in K500 let it be age-hardened to considerably higher strength.
Is K500 a good choice for instrumentation lines?
Yes. Instrumentation lines in acidic oil and gas conditions and in corrosive chemical process streams are established K500 duties. We produce UNS N05500 seamless tube from 6 mm OD, and single lengths of up to 22 m reduce the number of joints in a long run. Give the OD, wall and run lengths so cut lengths can be planned.
What will the certificate for a UNS N05500 order show?
An EN 10204 3.1 (3.2 on request) certificate names UNS N05500 and the delivery condition, gives the heat analysis against the Monel K500 composition limits and reports every test listed on the order. Heat numbers on the certificate match the marking on the tubes, so each length can be traced to its heat.
